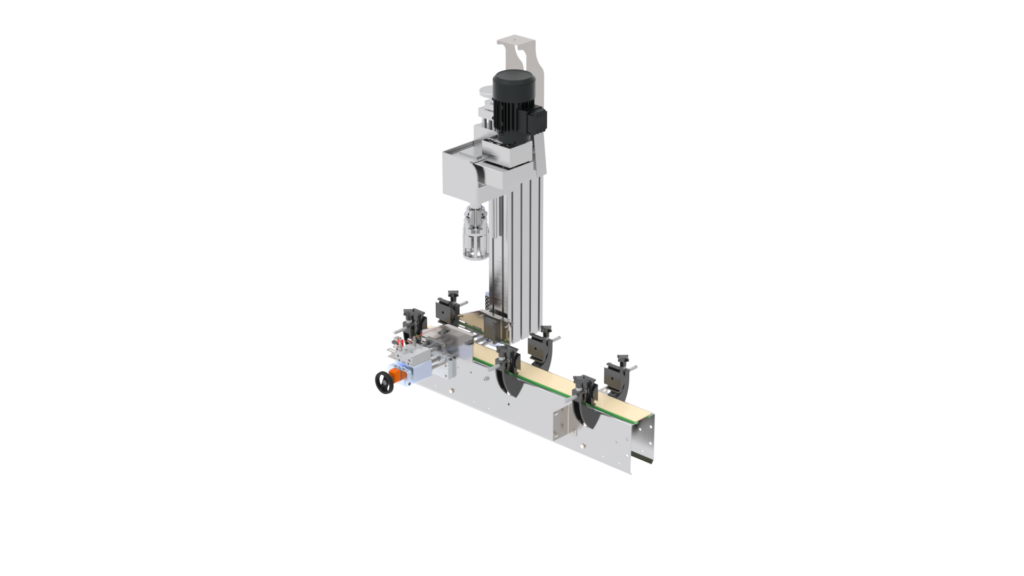

Automatic module VS 700 Automatic Crimping System for PFP Closures

The VS 700 is an automated crimping system engineered for pilfer-proof aluminum closures with diameters from 18 mm to 38 mm. Designed for accuracy, ease of use, and dependable sealing performance, it provides consistent capping quality at speeds of up to 20 containers per minute.

Built for industrial production environments, the VS 700 is well suited to manufacturers in the spirits, food, and cosmetics sectors that require secure, repeatable closure application on a wide range of bottle formats.

Its crimping assembly features four stainless steel rollers that shape and secure pilfer-proof aluminum caps with precision. A manual height adjustment system allows operators to adapt the machine to different container heights and packaging configurations with minimal effort.

To maintain precise bottle alignment before each crimping cycle, the VS 700 includes several positioning systems:

• a dual pneumatic cylinder indexing mechanism for accurate product transfer;
• a pneumatic bottle-centering device positioned beneath the crimping head;
• a 39-inch stainless steel conveyor section to keep containers stable throughout the operation.

Together, these features help deliver reliable, uniform crimping from one production run to the next. The machine is also designed to simplify format changes and routine adjustments, helping reduce downtime and improve line efficiency.

For operator protection, the VS 700 is equipped with full safety guarding, while still providing convenient access for setup, adjustment, and maintenance.

Technical Features

• Crimping head with four stainless steel rollers
• Manual crimping height adjustment
• Dual pneumatic cylinder bottle indexing system
• Pneumatic bottle-centering system under the crimping head
• Conveyor with stainless steel frame/profile
• Full safety enclosure with hinged access doors
• Optional Equipment
• Additional Crimping Heads

The VS 700 can be configured with additional crimping heads to handle multiple pilfer-proof closure diameters. Each cap size requires its own dedicated crimping head. Closure diameters must remain within the machine’s supported range of 18 mm to 38 mm.

The VS 700 is a fully automatic capping module and must be operated with a VSA control unit, or integrated downstream of a compatible filling system such as the K-Net Auto or K-Line S.

Advantages of the VS 700

• Handles up to 20 containers per minute
• Designed for pilfer-proof aluminum caps from 18 mm to 38 mm
• Four-roller crimping head for consistent closure forming
• Adaptable to different bottle formats with manual height adjustment
• Stable bottle positioning for improved crimping accuracy
• Built for industrial use in beverage, food, and cosmetic production lines

FAQ

What closure types can the VS 700 handle?

The VS 700 is designed specifically for pilfer-proof (PFP) aluminum closures. It can process cap diameters ranging from 18 mm to 38 mm, provided the machine is fitted with the appropriate crimping head for the selected closure size.

What is the production rate of the VS 700?

The VS 700 can run at speeds of up to 20 containers per minute, or roughly 1,200 units per hour. Actual throughput may vary depending on bottle shape, cap dimensions, product handling conditions, and line integration.

Can the VS 700 operate as a standalone machine?

The VS 700 is an automatic crimping module, but it must be connected to a VSA control unit for operation. It can also be installed directly after a compatible filling machine, including the K-Net Auto or K-Line S.

Can one machine handle several cap diameters?

Yes. The VS 700 can be set up for multiple pilfer-proof cap sizes by using interchangeable crimping heads. A dedicated head is required for each closure diameter.

Which industries is the VS 700 designed for?

The VS 700 is suitable for companies that use pilfer-proof aluminum closures in their packaging operations, including distilleries, spirits bottlers, edible oil producers, food manufacturers, and cosmetic brands seeking an automated crimping solution.
